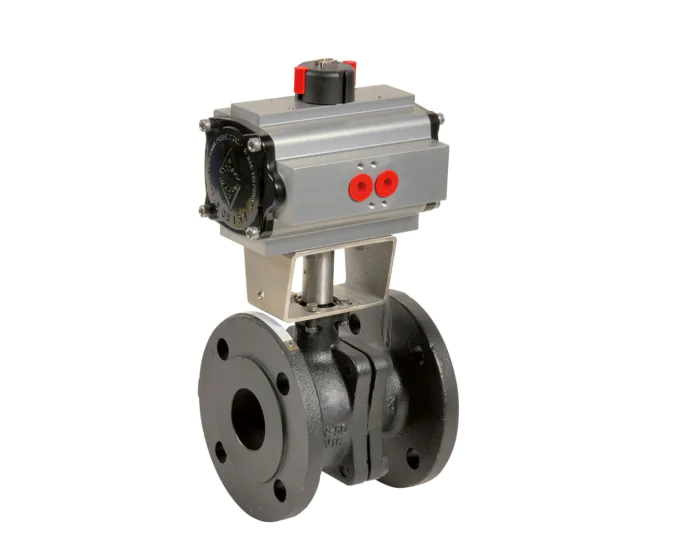

The 507 series cast iron ball valve has an EN-GJL-250 body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN200.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN200 - 8'' |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| Seats | PTFE |
| Ball material | Stainless steel 304 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Range | HVAC |
| Fire safe | No |
| Shaft/stem matérial | Stainless steel 304 |
| ATEX compatible | No |
| Face to Face (mm) | 140.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body | 270226015101 | S1002322 |
€300.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270226016103 | S1002323 |
€379.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270227015102 | S1002324 |
€345.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270227016104 | S1002325 |
€459.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270228015102 | S1002326 |
€389.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270228016104 | S1002327 |
€488.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270229015103 | S1002328 |
€463.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270229016105 | S1002329 |
€800.67
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270230015104 | S1002330 |
€634.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270230016105 | S1002331 |
€765.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270231015105 | S1002332 |
€859.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270231016107 | S1002333 |
€965.33
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270232015105 | S1002334 |
€1,234.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270232016107 | S1002335 |
€1,283.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body | 270233015107 | S1002336 |
€1,824.79
(excl. btw)
|
add to cart |
